Afanasy in Blender


Afanasy realised as a render engine in Blender. One of its parameters is a render engine name to render. Default is BLENDER_RENDER. Afanasy script will set specified render engine and save a scene with a temporary name to render. To list all available engines type blender --engine help.

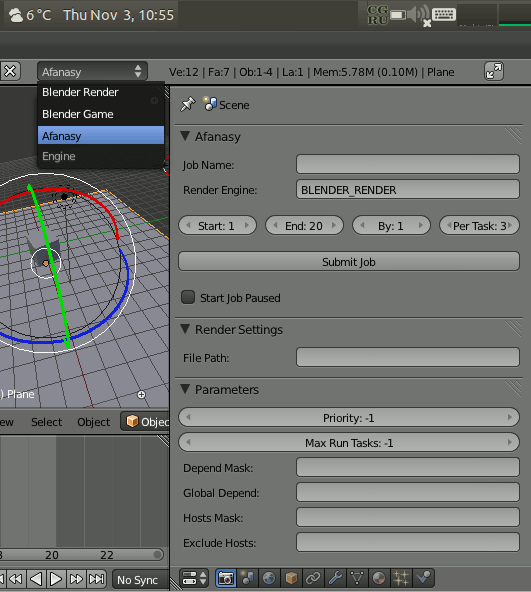

Afanasy render engine properties

afanasy_menu

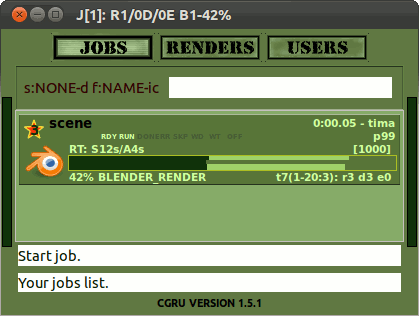

Job GUI

afwatch_job

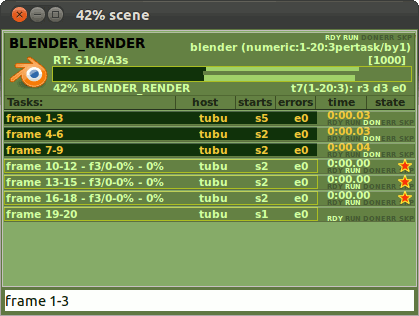

Tasks

afwatch_tasks
  • Job Name - Afanasy job name. If empty scene name will be used.
  • Render Engine - Render engine to switch to.
  • Start - First frame to render.
  • End - Last frame to render.
  • By - Frames "jump" or increment.
  • Per Task - Number of frames in each task.
  • Submit Job - Construct a job and send it to server.
  • Start Job Paused - Start job paused (send in off-line state).
  • File Path - If not epmty, override output images to render.
  • Priority - Job priority (execution order).
  • Max Run Hosts - Maximum number of running at the same time tasks ('-1' means no limit).
  • Depend Mask - Other job(s) name pattern to wait (empty value means not wait any job).
  • Global Depend - Other job(s) pattern of any user to wait.
  • Hosts Mask - Hosts names pattern job tasks can run on (if empty job can run on any host).
  • Exclude Hosts - Hosts names pattern job tasks can not run on.


   $ blender --engine help
   Blender Engine Listing:
	   BLENDER_RENDER
	   BLENDER_GAME
	   CYCLES
	   POVRAY_RENDER
	   AFANASY_RENDER
